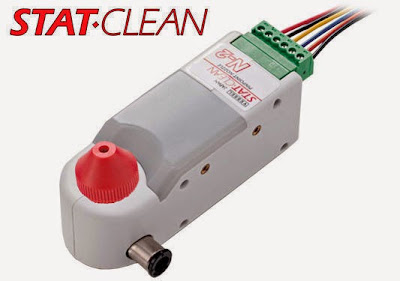

VESSEL N-2 : Compact Nozzle Type Ionizer

Very compact with a low profile!
(Only 3.74”L x 1.34”W x 1.77”H)

Its compact design is ideal for confined spaces. With very accurate ion balance within ± 10V, this unit has a powerful airflow for effective cleaning (up to 87psi) with quick decay time less than 0.7 seconds (at a distance of 6” using 43.5psi).

The body of the unit is equipped with an LED indicator that communicates the device’s operating status at a glance. Incorporates a reliable high frequency piezoelectric transformer and is usable with compressed air and nitrogen gas. With the 6-terminal power harness, multiple units can be connected together using one power source and warnings can be sent to external equipment.

Includes three kinds of interchangeable nozzles for different applications. An optional flexible shower tube is available (N-2C6B) for effective countermeasure against static accumulation such as in a film winder, molding machines, hoppers, conveyers, and other applications. The easy maintenance design allows an operator to change electrode needle in seconds using electrode needle removal tool (G-7DR).

Berat : 0
Detail Produk:

N-2 Compact Nozzle Type Ionizer



* Ion Generation Method : High-Voltage AC Corona Discharge
* Applied Voltage : AC 6.0K V(p-p)
* Input Voltage : DC 24V ±5%
* Power Consumption : 58mA (typ.)
* Applied Source : Clean Air: 14.5~87psi
Nitrogen Gas: 14.5~87psi
* Air Consumption : 29psi
* Working Temp. Range / Working Humidity Range : 32~140°F / 35~85% RH (no dewing)
* Decay Time : ±1000V~±100V, within 0.7sec, 43.5psi/6" [measured values]
* Materials : Housing: ABS Resin
Nozzles: Polyacetal Resin
Needle Pole Electrode: Tungsten
