VESSEL Heat Air Nippers (Thrust-Cut Type)

* Thrust-cut type heat nippers
* Stationary blade for easy workpiece positioning. Moreover, the nippers are insulated to protect workpieces against thermal deformation.
* Blade opening/closing speed can be changed.
* Ideal for cutting film and small diameter gates
* Blades are Teflon-coated to facilitate workpiece removal.

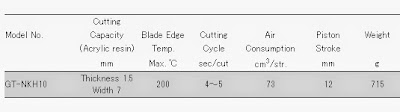

GT-NKH10Download Drawing 2D

Berat : 0
Detail Produk:

Heat Air Nippers (Thrust-Cut Type)


Heat Air Nippers (Thrust-Cut Type) Description

* Included heater : HTL-28.5-6.25-300L 80W1H (80W/100V) Cord length 300mm Recommended temp. 140°C

* Included temperature sensor: SNO300L Thermal couple type K (Nickel-Chromium/Nickel-Aluminum) Recommended temp. 140°C Cord length 1,000mm

* Air Pressure: 0.6MPa

* Working air hose inner diameter: 4mm

# 200V/240V heaters are also available to order.

* Hydro-converter (Recommended: KOGANEI AHC 32×50) Working fluid: Petroleum hydraulic fluid or turbine oil with antifoaming agent additive (VG22~100)

* Temperature controller (DTC-001)

Blades Specifications:Special Alloy Steel?Knife type (resin)
NKH10AJ Blade Opening:12mm Cutting blade effective:10mm Weight:137g
NKH10RAJ Blade Opening:12mm Cutting blade effective:10mm Weight:137g
